Motorvagn Y6

sidan uppdaterad:  2008-08-27  Back


Prototype Model  Building of the model More pictures

Photos: Where nothing else noted : Olle Frykmo

Prototype
Click to enlarge

Click to enlargePhoto: Rolf Frykmo

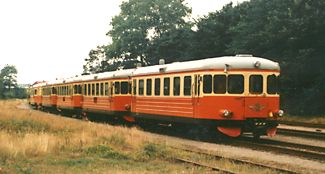

A row of railcars from different preservation societys.
Picture from Åhus in the south of Sweden. The railcars is temporarily on duty on the line Kristianstad - Åhus during the great scoutcamp "Scout 2001".
Another picture from another summer, long ago - The summer of 1958
 I suppose it was here I found out that trains were interesting.
The little guy on the left side of the gate is me, a couple of years ago.

Model N-scale  --  (on it´s way)

Pictures of the two different types of railcars produced by Togdillen.
The pictures shows the bodys as they are delivered.
Except for the trimming of excessive mouldings You could do some more modifications to hav a more correct model.


(Photos from Nmodell:s website)

The dummy unit  The motor unit
Building of the model
Some modifications:

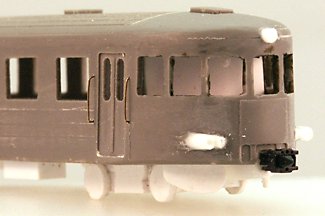

A destination plate should be present at both sides of the roof
The small single lighthouses are changed to double houses
and a top light is added.
The dummy wagon is made to be a static device on the layout.
So a styrene chassis is fitted to the unit.
The motor unit is still waiting for the proper chassis.
A Tomix chassis that will be delivered in september, I´ll hope.
Details
I have tried to make some "superdetailing" with details made from tiny 0,3mm brass rod

First step - Find the drill handle and mount the 0,3mm drill


The next step is to make a guide plate for bending and drilling

The rod is bent over the guide, 5 mm between the legs

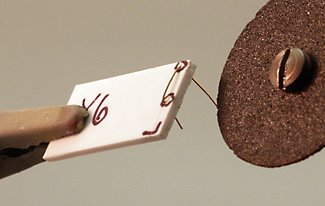

The "legs" are cut to 1 mm length

And here is one of the handrails

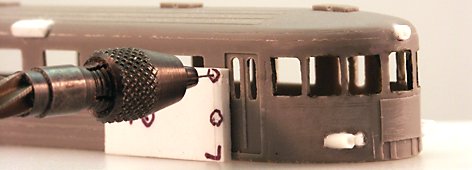

The same guide is now used when drilling the holes in the body.

  top

The handrails is tested temporarily on the body.
They will be mounted when the body is painted.

Next detail is a new front hatch

The hatch is made of 0,5 mm styren sheet
Tou can try to drill two 0,3mm holes for the hanldles.
It is possible - You have 0,1 mm on each side of the hole ;-)
(But be prepared with lot of hatches, sometimes the drill will slip)

Now the models are waiting for painting and lettering.

  top

A picture taken during the painting sessions.
Next steps is to paint the bottom line in black, make the front windows and to mount the handrails.

And later when availible, fit the motorised chassis to make the model run too.......




top

top

More pictures

Will come later on ....
